2020 with new probe cheapest Sonoscape E2 portable ultrasound scanner MSK OB/GYN for sale

FOB Reference Price:Get Latest Price
US$3,000.00 - US$8,000.00 / Set | 2 Set/Sets (Min. Order)
Shipping:
Support Express · Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Sonoscape
Model Number:
E2
Power Source:
Electric
Warranty:
2 years
After-sale Service:
Online technical support
Material:
plastic
Shelf Life:
1years
Quality Certification:
ce
Instrument classification:
Class II
Safety standard:
MDD 93/42/EEC
Type:
Doppler Ultrasound Equipment
Application:
MSK, GI, OB/GYN, Cardiac, POC, etc.
Display:
15.6" High Resolution LCD color monitor
Certificate:
CE ISO
Imaging mode:
B/ 2B/ 4B/ M/ CFM/ PDI/ DirPDI/ PW
Transducer connector:
2
Product name:
Sonoscape E2 portale color doppler ultrasound
Hard disk:
500G
μ-Scan:
2D speckle reduction technology
Output:

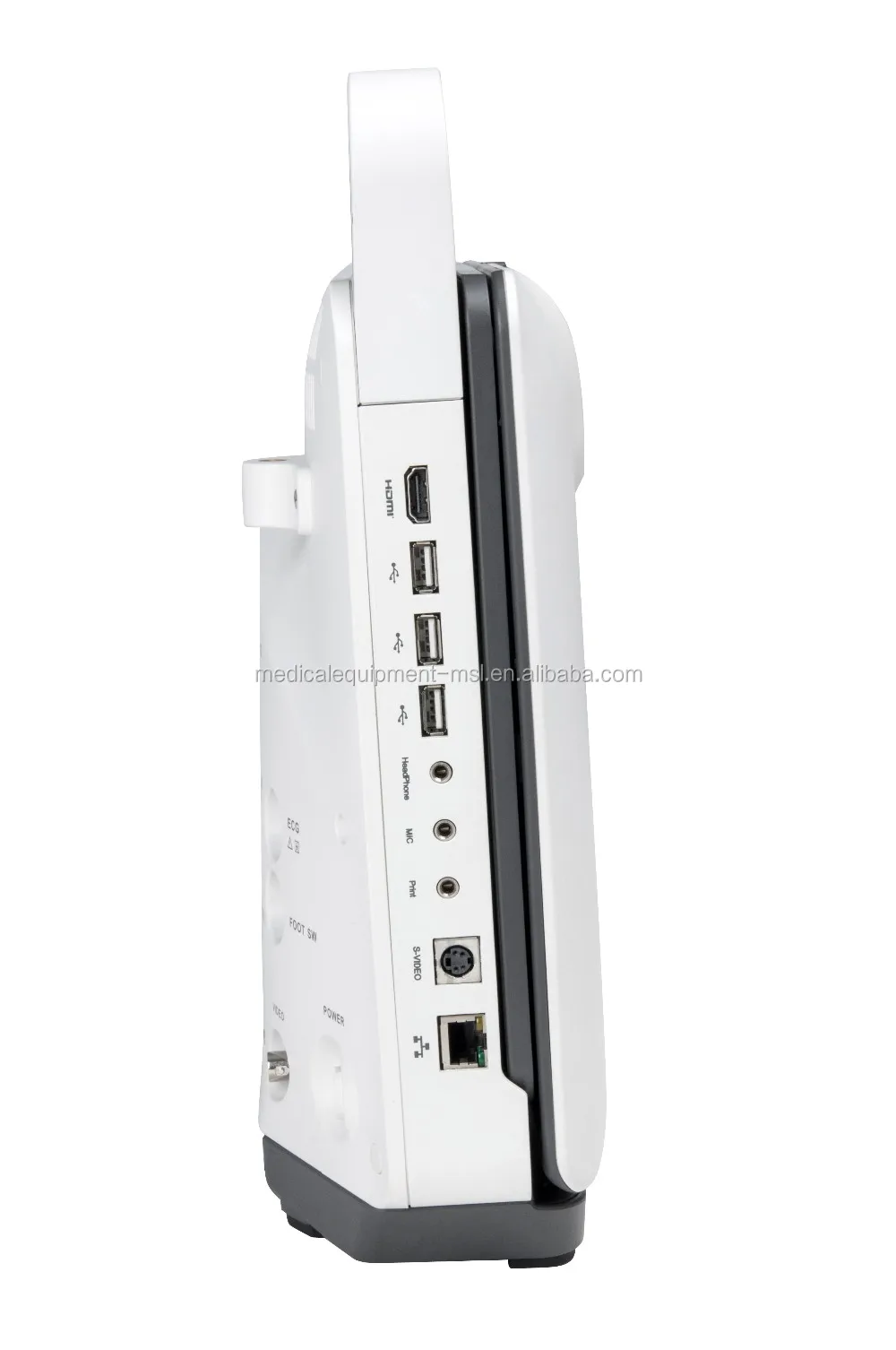

USB 2.0, DICOM 3.0
Supply Ability
Supply Ability:
800 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard shipping package
Port
Guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Video Description
Product Description

Integrated with Accuracy and Convenience

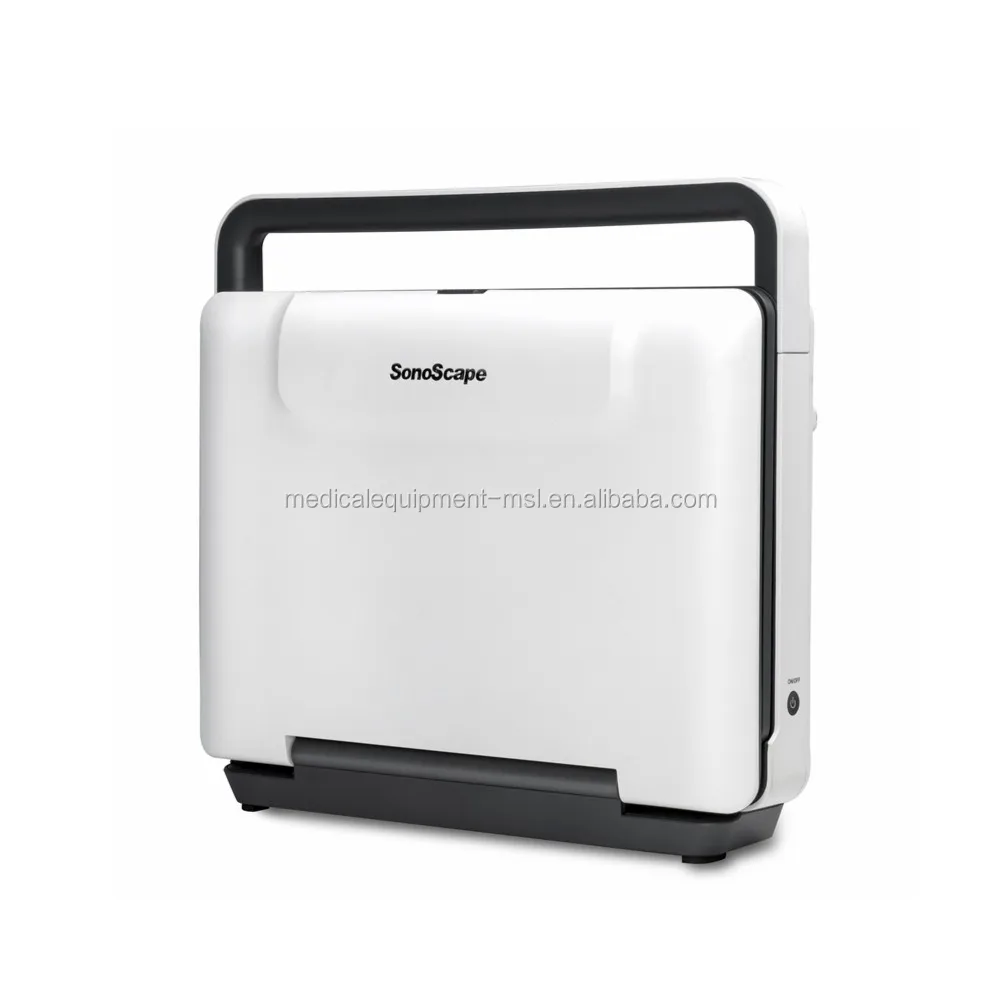

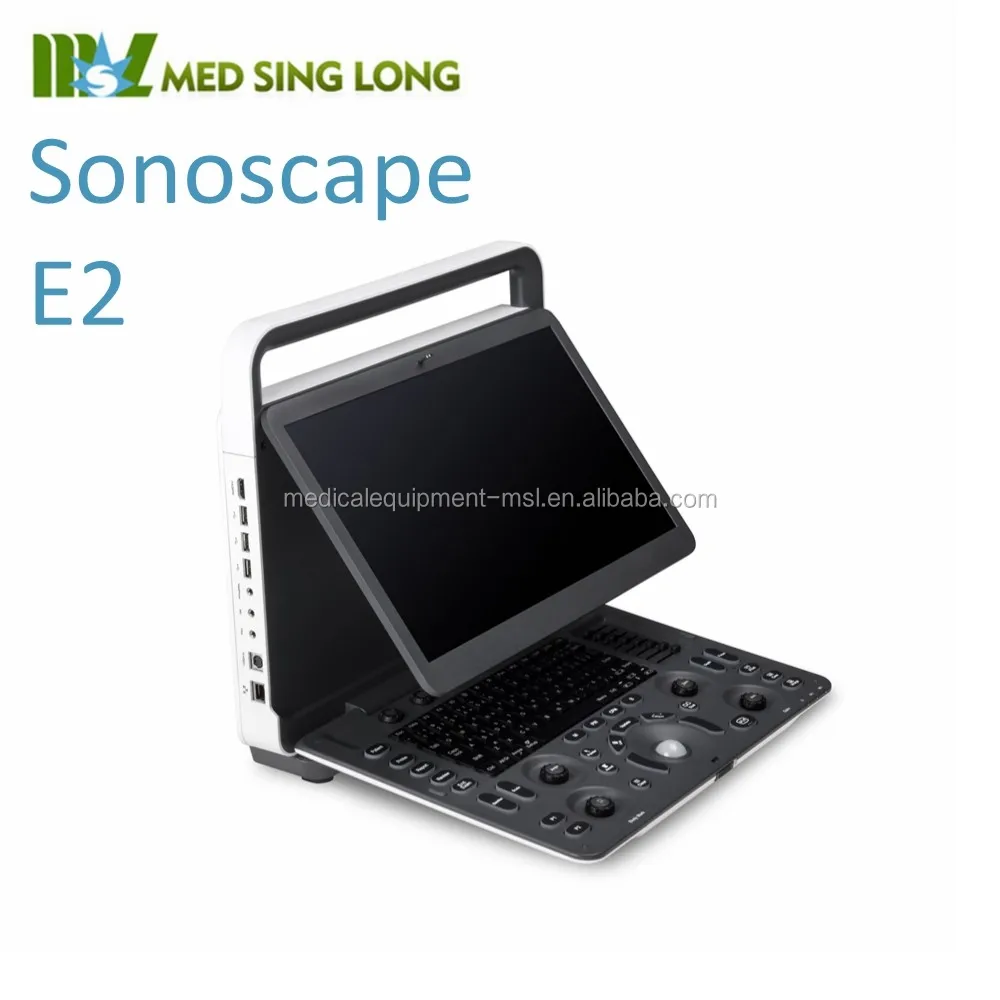

Sonoscape E2

E2 is a color Doppler ultrasound system that reaches beyond your expectations due to its compact and fashionable appearance.

It fulfills GI, OB/GYN, Cardiac and POC applications to fit your routine scanning needs while its color mode will help you for more accurate and efficient diagnosis of lesions.


Based on former models, E2 has also upgraded the newest technology.

Auto Image Optimization


With the press of a button the image is automatically adjusted and optimized, saving you time with parameter adjustments. Additionally, with Auto Focus on, the focus area follows the depth of the ROI box as it is moved in the scanning field, providing users a excellent image quality in the desired area of interested.

Automated Calculation

E2 provides automatic calculations to enhance your diagnostic confidence and save you time for patient communication.
Auto IMT is used when determining the level of vascular sclerosis present in the patient by automatically tracing the thickness of the carotid vessels.
Auto trace provides users sensitive and accurate wave tracing, avoiding error of manual trace and giving out calculation result in no time.

This system is based on the computer technology and Linux operation system, which make the system more flexible and stable. System maintenance and function update can be completed by software updating, through which would promote product value and keep the technological advancement.

Color doppler
Gain
0-255
Frame rate
106 fps (probe dependent)
Size and position of color ROI
 adjustable
Inversion
Up/Down, Left/Right
Flow invert
On/Off
Frequency range
3 steps, adjustable
Hide flow
 On/Off (freeze mode)
Wall filter
Min, Low, Med, High, Max adjustable
PRF
0.5 - 10KHz  (probe dependent)
Line density
Min, Low, Med, High adjustable
Color/direction energy
7 levels adjustable for color Doppler mode
Color baseline adjustment
 9 levels adjustable
Persistence
Off, Low, Med, High, Max selectable (probe dependent)
B reject
0 - 255 adjustable
Linear steer angle
0, ±8°, ±12°, ±16° adjustable

Advantage of Sonoscape E2

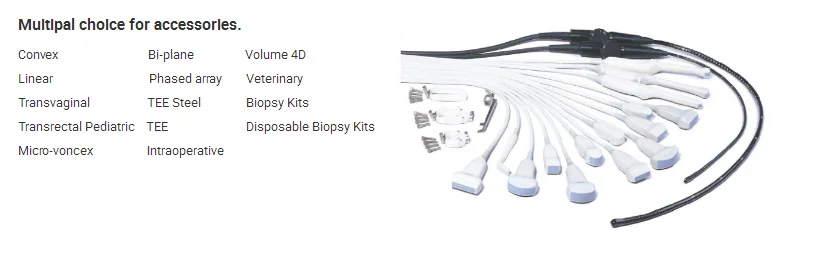

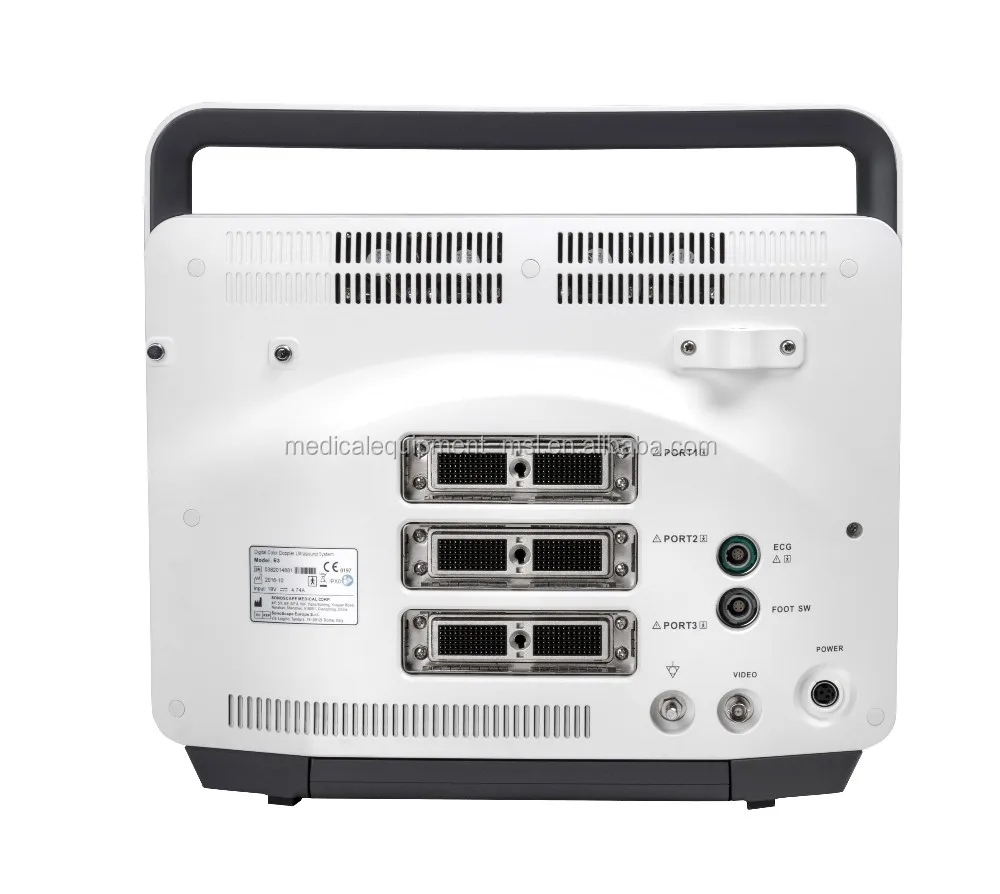

With 4D OB/GYN, and a full suite of transducers ranging from 2 MHz to 16MHz, the SonoScape E2 portable ultrasound system has the most competitive image quality at its price-point. It is a great solution for private practices, hospitals, mobile services, and clinics looking for a full body machine to use in their office or to share between offices. Its portability allows it to be transferred easily (on or off a mobile cart). The SonoScape E2 is also lightweight and can be carried from room-to-room or office-to-office without any difficulty. A mobile cart makes it easier to transfer from room-to-room and also has a cradle for the transducers. For applications, it is truly unique in this price range. In addition to standard applications and transducers, the SonoScape E2 also has the following capabilities: 4D real-time obstetrical imaging, bi-plane rectal imaging, panoramic imaging, transducers ranging up to 16 MHz... as well as the standard features you'd find on most ultrasound machines. It also has 3 active transducer ports. You can use the SonoScape E2 in nearly every clinical situation, which makes it a great choice for small offices, family practice, or hospitals introducing ultrasound into new departments.

Detailed Images

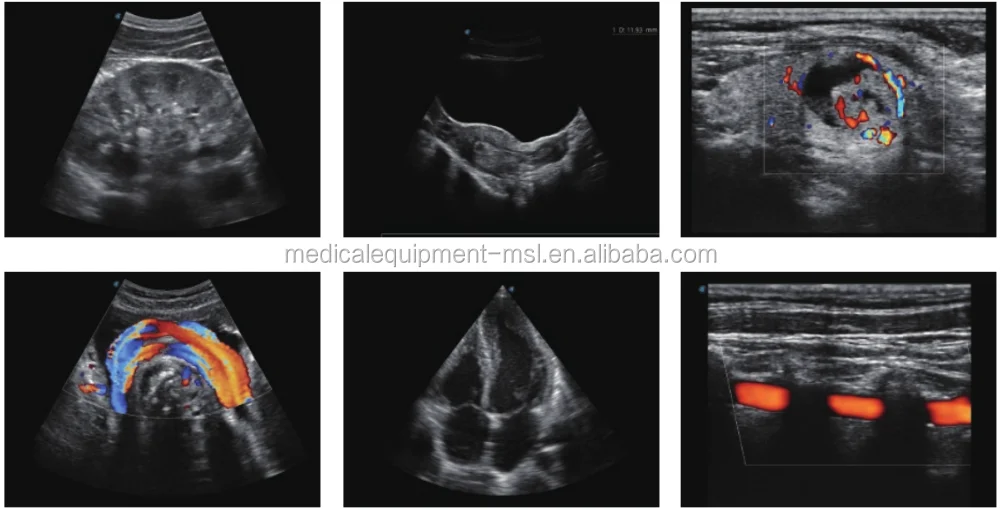

IncredibIe image
