X ray detector portable for digital x ray machine

FOB Reference Price:Get Latest Price
US$500.00 - US$1,999.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
MSL
Model Number:
FP06
Warranty:
Lifetime
After-sale Service:
Online technical support
Instrument classification:
Class II
Properties:
Medical X-ray Equipments & Accessories
Name:
DR x ray flat panel detector
Image size:
17*17 inch
Scintillator:
CsI
Pixels:
3072(H)*3072(V)
Spatial Resolution:
3.7Lp/mm

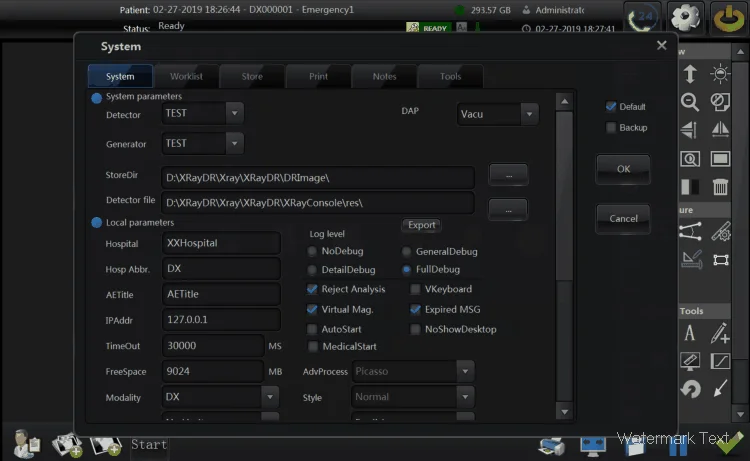

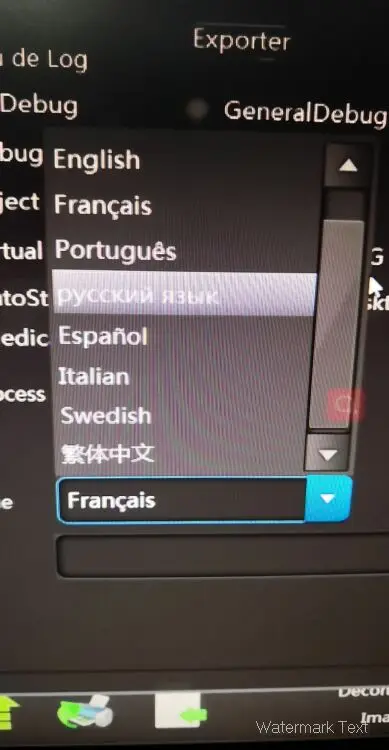

Software:
Staray 4.4.0
Warranty period:
2YEARS
Dimensions:
460*460*16mm
Pixel Pitch:
139um
BRAND:
MSL
Supply Ability
Supply Ability:
100 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard export package
Port
GUANGZHOU
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 3 To be negotiated
Product Description

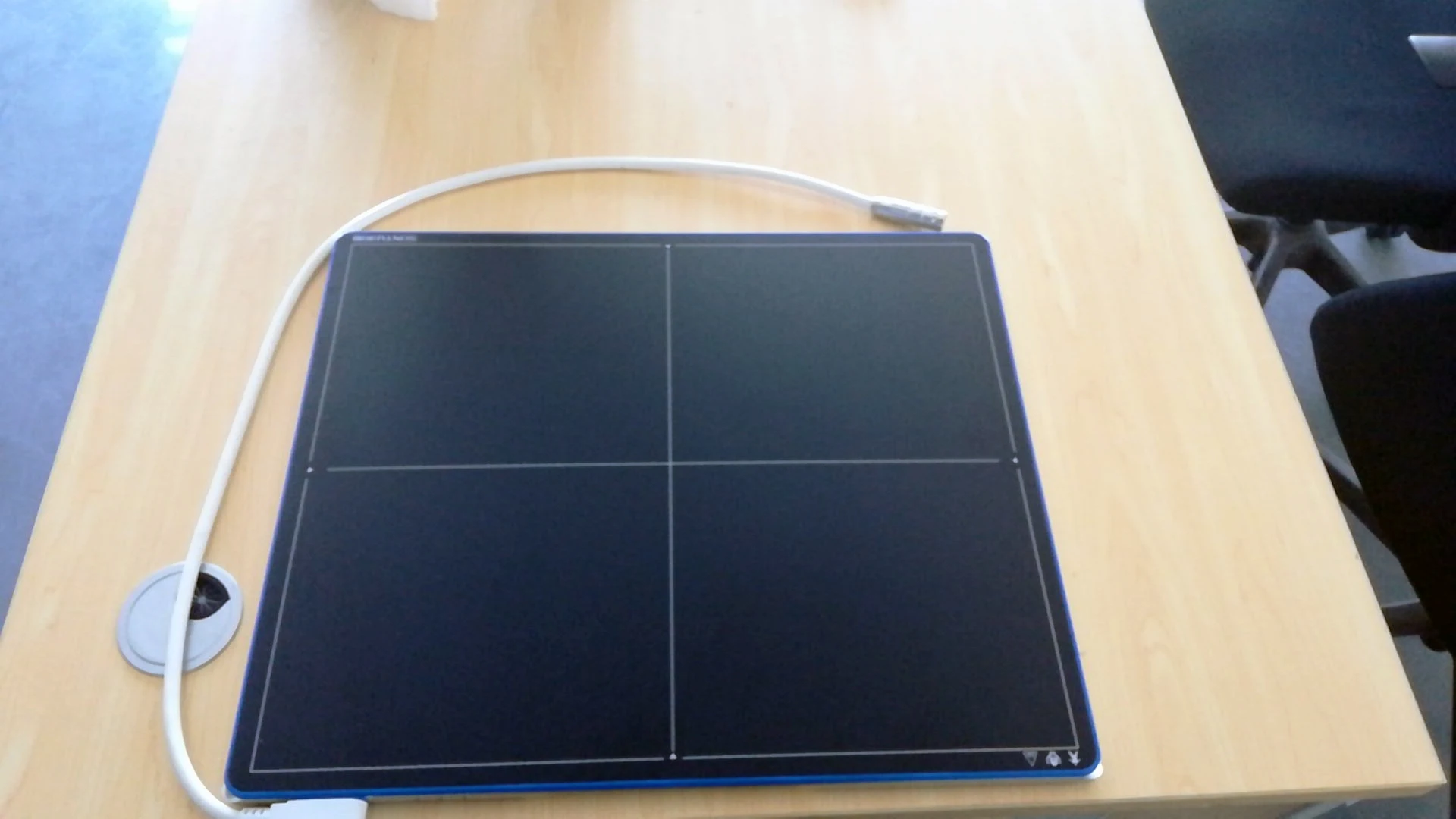

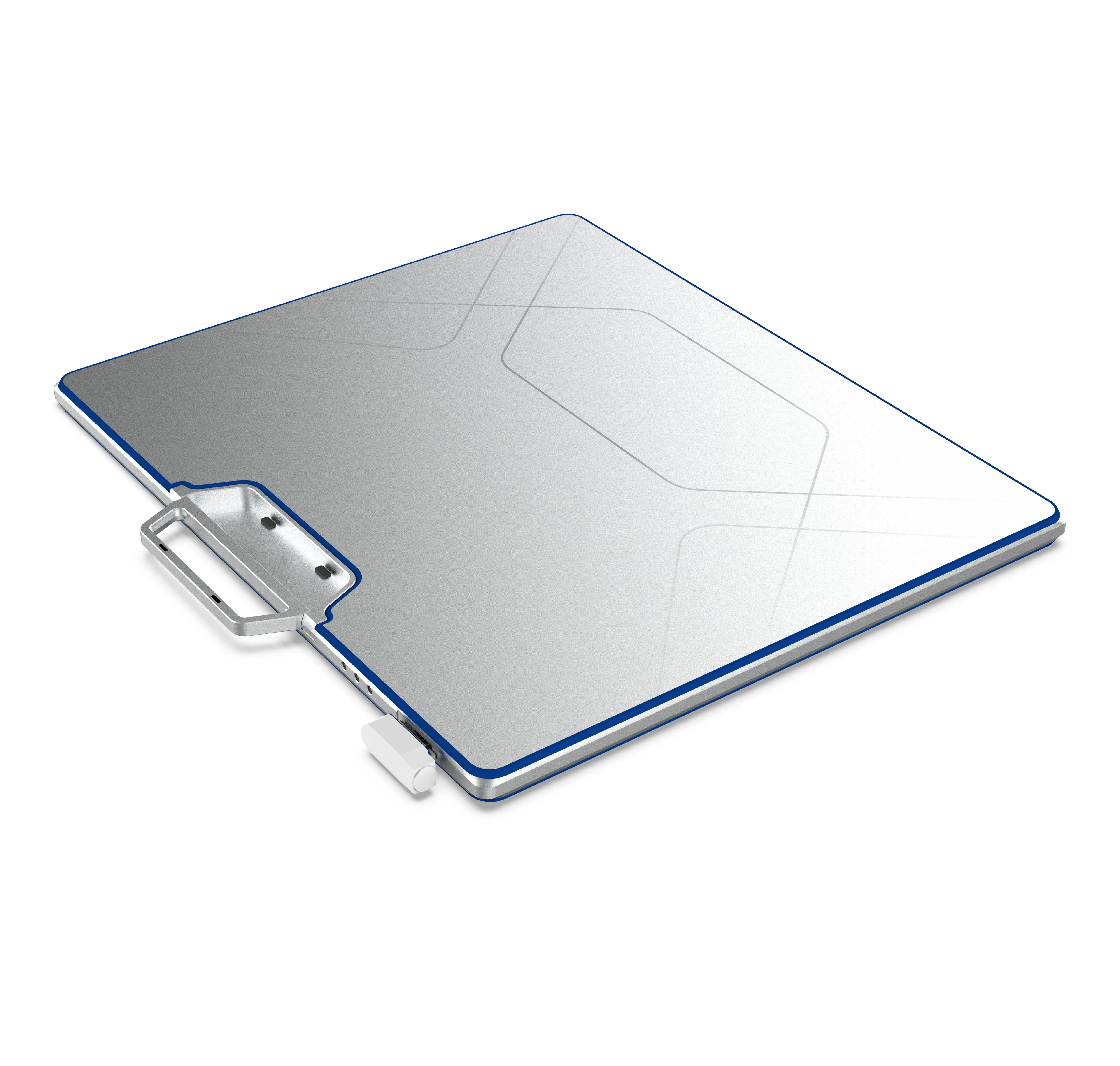

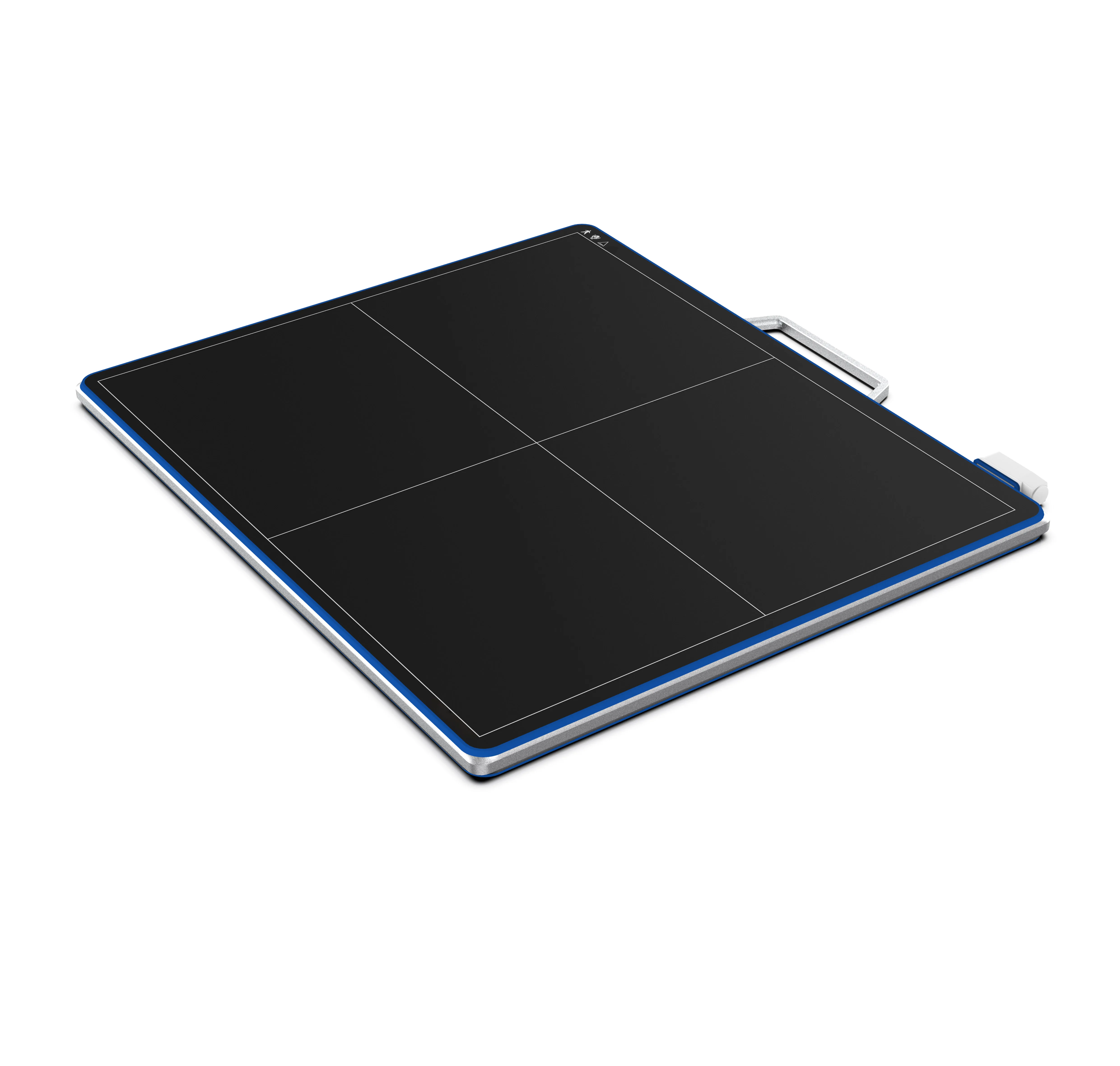

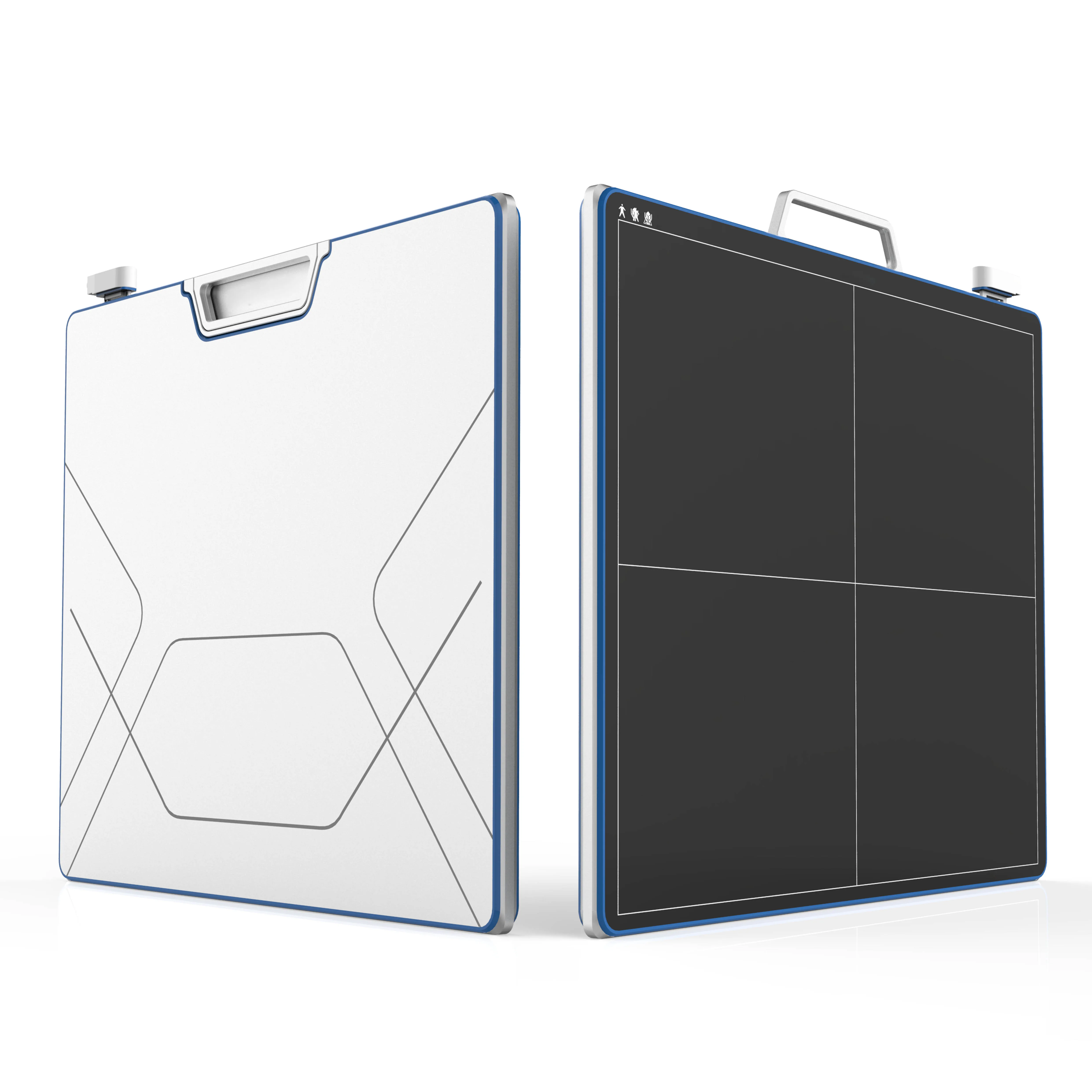

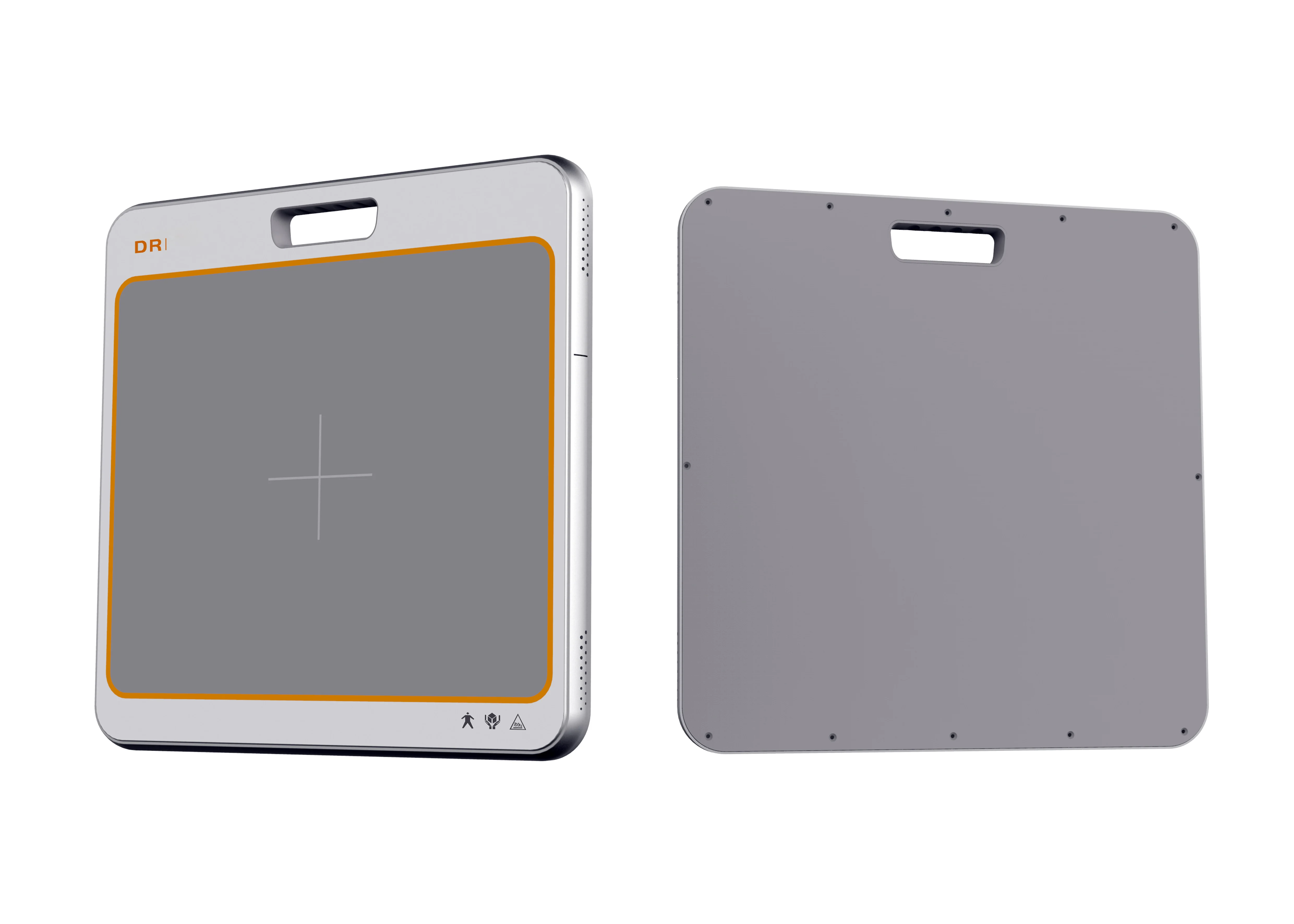

MSLPBT01 is a 17x17 cassette-size wireless portable flat panel detector designed for Human used digital radiography.   Ø Fast workflow Ø More image details Ø Excellent image quality Ø Cassette-size flat panel detector
Contact with me:+86 13657961088 Rainbow

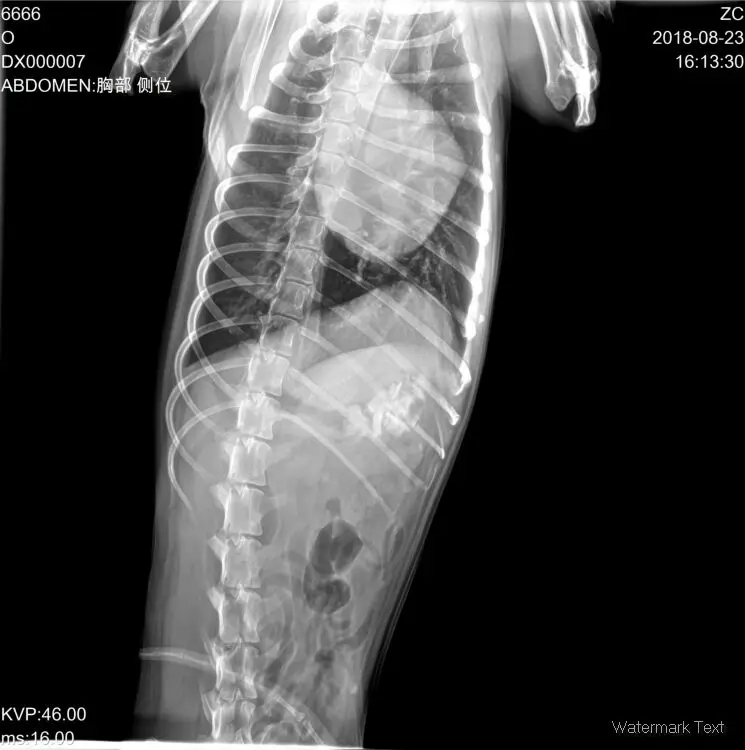

Specs and Details Images
Detector Technology
Amorphous Silicon
Scintillator
CsI
Active Area
420mmx 420mm
Number of Pixels
2304 x 2800
Pixel Pitch
139 um
AD Conversion
16 bit
Trigger Mode
AED/Software
Data Interface
Ethernet/WiFi(802.11ac)
Dimension
384mm x 460mm x 15mm
Weight
3.6 kg
Drop Height
120cm
Static Loading
150kg Uniformly
Battery Capacity
5 h
Sensitivity(LSB/uGy)
Typ.750
Maximum Linear Dose(uGy)
Typ.60
MTF @ 1.0 LP/mm (Typ.)
68%
MTF @ 2.0 LP/mm(Typ.)
40%
MTF @ 3.0 LP/mm(Typ.)
22%
DQE @ 0 LP/mm(2.5uGy@RQA5, Typ.)
69%
DQE @ 1.0 LP/mm(2.5uGy@RQA5, Typ.)
52%
DQE @ 2.0LP/mm(2.5uGy@RQA5, Typ.)
36%
Limiting Resolution (without phantom or grid)
3.6 lp/mm
Trigger Mode
AED/Software/Prep
Preview Acquisition Time
Typ.3s
Full Image Time
Typ.5s
Cycle Time
Typ.8s

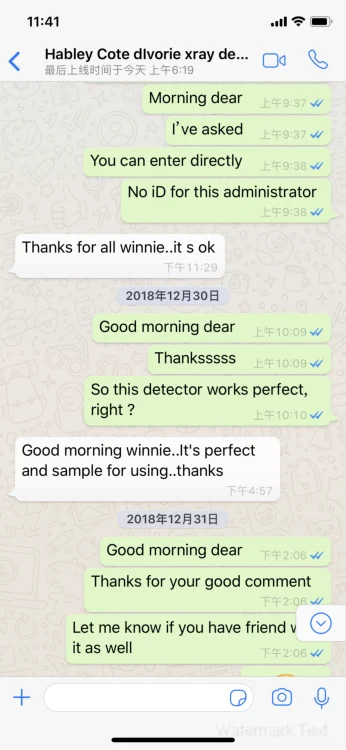

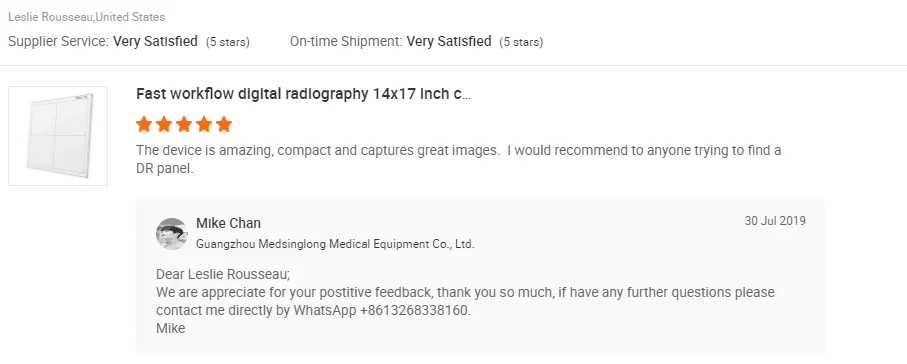

Feedback and related products
After Sales Service
After-sale service
1.Within guarantee period: Supply all-free repair and maintenance . For small problems, we can provide remote guidance and send the buyer free spare parts. For big problems that cannot be solved by buyer himself, we will recall the machine and repair it in our company. Spare parts my company provide for free.
2. Beyond warranty period, for small problems, we can also provide remote guidance, and the buyer only need to pay for the cost of the spare part and express fee. For big problems that cannot be solved by the buyer, we will recall the machine and repair it in our company. The clients are responsible for the transport and repair expenses.

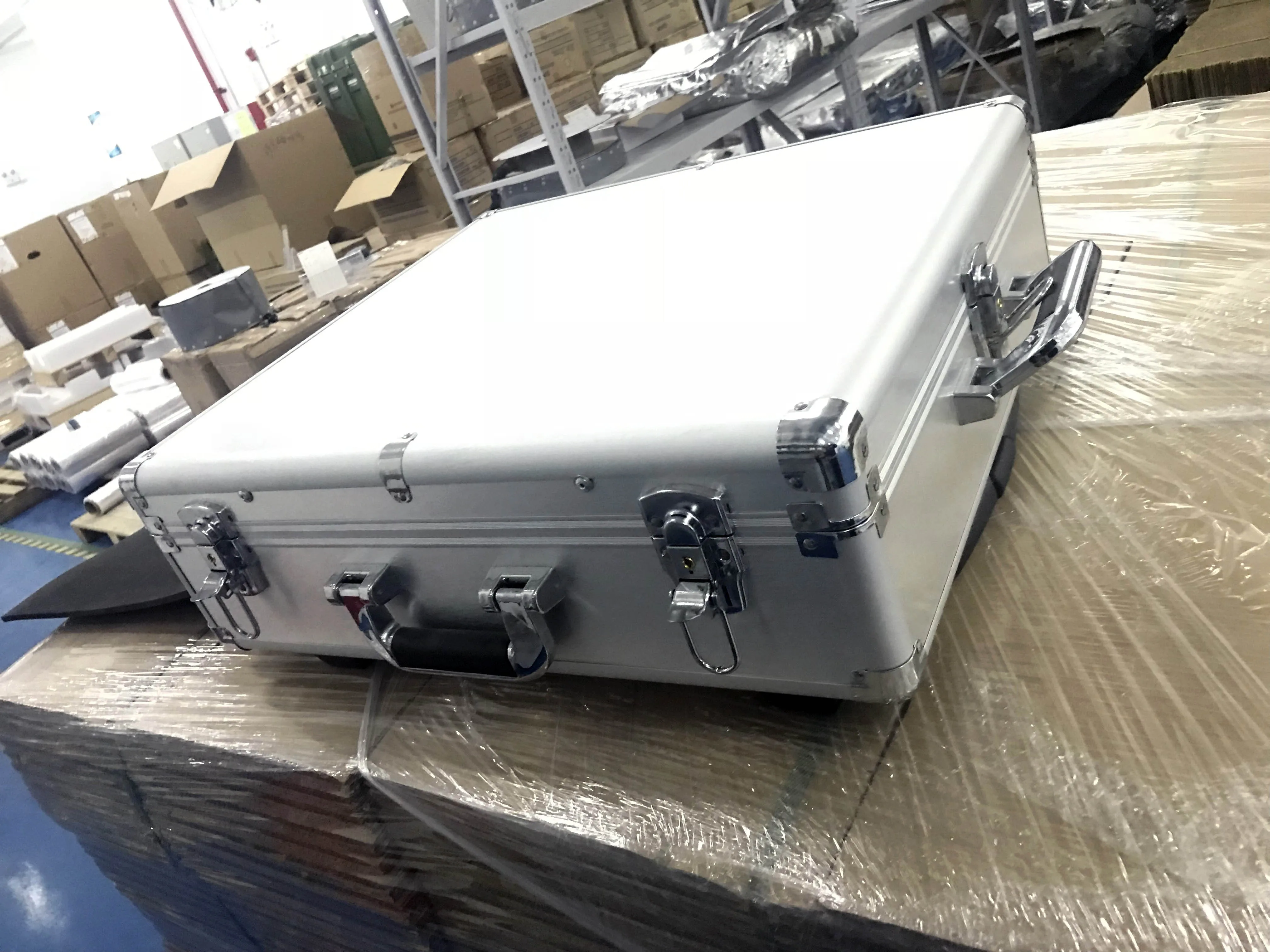

Packing&Shipping
Certificates
Advantage
Company Introduction
Company Presentation

Guangzhou Medsinglong Medical Equipment Co., Ltd. (MSL) located in Panyu district, Guangzhou city, which is a professional medical supplier founded in 2008 , dedicated to supplying low-priced medical equipments with strict quality and comprehensive services.

With the efforts of our procurement team, we have successfully cooperated with outstanding manufacturers who developed hundreds of models to meet the needs of different customers, such as Ultrasound machine,X ray machine,Blood analyzer,Biochemical analyzer,veterinary equipment,Radiation protection equipment, beauty machine and so on. Whether hospitals, clinics,or persons, you can always find your expected products here in Medsinglong. Until now, we have exported to 161 countries in the world, saving
approximately 50 million US Dollar of medical costs for our clients. The average annual growth rate of sales of our company is
118% in continious 5 years. We believe that customer satisfaction is the greatest success. Therefore, lowering the cost of your
medical devices is our goal. In order to accomplish the target, efforts and support from you are essential to make it happen.
